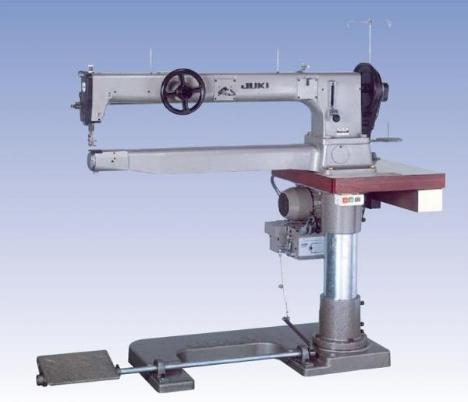

Juki TSC-461,Single Needle,Super Long Arm 37.5" Cylinder Bed,Needle Feed Walking Foot Sewing Machine + Pedestal Stand & Motor Features: This machine is capable of powerfully feeding the materials which cannot be smoothly fed by conventional machines. It is equipped with a free space under the arm as wide as 950mm, which means that the machine is capable of sewing large materials, long-sized materials and tubular sewn products with ease. The lift of the presser foot is high as 20mm. The lifting amount of the presser foot is sufficient to sew extra heavy materials. The machine is equipped with a built-in type bobbin winder which the operator can reach during sewing. The machine comes with a large shuttle hook and large bobbin which have been exclusively designed for sewing extra heavy materials: these reduce the frequency of bobbin replacement. Thereby leading to higher efficiency in sewing extra heavy materials using thick threads. When compared with the conventional 45K bobbin, the amount of thread wound around the newly developed large bobbin is increased by 50%. Applications: Carrying bags, Transportation Equipment & Sporting goods. Specifications: Max. Sewing speed: 650rpm Max. Stitch length: 11mm (normal/reverse feed) Needle bar stroke: 56mm Lift of the presser foot: By hand: 12mm, By pedal: 20mm Reverse feed stitching method: By lever Thread take-up: Cam type thread take-up Alternating vertical movement: 4 8mm Hook: Large capacity shuttle hook Needle (at the time of delivery): 794 (Nm230) Nm=130 Nm280 Thread #8 #0. 892 8277, Nm=30/3 8/3 Lubrication: By an oiler Lubricating oil: JUKI New Defrix Oil No.1 (equivalent to ISO V37) Bobbin winder: Built on the machine arm Top-feed method: Interlocked with the bottom feed mechanism Distance from needle to machine arm: 950mm Extra Heavy Duty 37 inch Long Cylinder- Bed Compound Needle Feed Walking Foot Stitching Machine for Leather, Webbing, Canvas, Filters and any Heavy Fabrics from about 1/16” up to 7/8” thick with an adjustable stitch length lever and reverse feed for back-tacking. *Note,Pedestal Stand is knocked down unassembled so machine and stand parts can ship on wood pallet by our freight line carrier. US Warranty: 90 Days labor on defects in materials and workmanship. Non-US Warranty: 30 days parts and labor Availability: Yes Condition: New in 4 Boxes Shipping: This item usually leaves warehouses 2-3 days,this model leaves warehouse in 6-8 weeks Returns: No Returns Add to Cart Our Price$19,999.00 |
