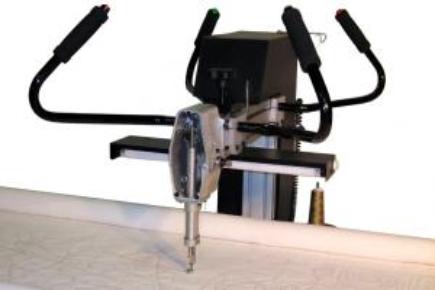

Consew 1709Q 17 Inch,Long Arm 9" Height Quilting Machine, 360° Motion Control Driven Presser Foot Features: Automatic Needle Up/Down Front & Rear Adjustable Adjustable Speed Control Laser Pointer for Tracking Patterns Top Handwheel 10’ Steel Frame Light weight aluminum alloy construction. Miniature PLC easily adjusts the sewing speed and needle stop position. Front and rear adjustable control handles. Ten foot frame with dual rail easy roller system. Adjustable fabric ratcheting tensioners for multi-ply (3) applications. Detachable laser pointer for tracing pattern. Work table for small patterns. Built-in Florescent light. Nylon wheels with sealed steel bearings. 1-1/2” 11ga steel poles for less bowing. Rotary thread tensioner. Oiless needle and presser bar for no oil drips. Synchronous belt drive to top and bottom shaft. Harmonic balancers on top shaft. Top mounted non-engaged hand wheel. “L" bobbin case and belt driven Koban hook assembly Rear mounted thread stand. Includes light frame for mounting overhead light (light not included) Applications: Free arm quilting and embroidery of light and multilayer materials Especially suitable for long and complex materials. Specifications: Motor: 5/8 hp 40pole brush DC Speed: 0-3000 spm (* Speed depends on operation, materials and thread) Frame: 10 foot 1-1/2 in. 14 ga. steel square tubing Capacity: 17 in. depth x 9 in. height Voltage: 115vac Shipping Data: Frame 290 lbs / 10'6” length x 13” width x 10” height Machine 85 lbs / 34” length x 26” width x 28” height US Warranty: 90 Days labor on defects in materials and workmanship. Non-US Warranty: 30 days parts and labor Availability: Yes Condition: New in (4) Boxes Shipping: This item usually leaves warehouse 3-5 days Returns: No Returns Add to Cart Your Price $6,985.00 |
