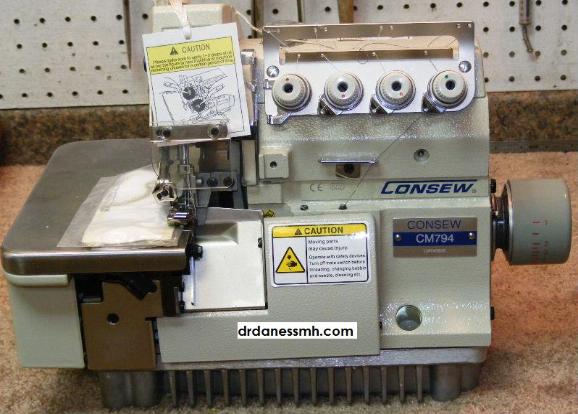

"NEW" Consew CM794 ,High Speed 2 Needle,4
Thread Overlock Serger + Knockdown Stand











The "New" Consew CM794 High Speed Four Thread Overlock Serger is Suitable for seaming sides and joining front and
side panels on ladies' swim suits, children play pants; closing sides on ladies' panties; setting sleeves on ladies' uniform
dresses and knitted sport shirts; sewing cuffs to sleeves and attaching pocket pieces to front and back on ladies' robes;
setting body lining on men's raincoats, etc. Equipped to handle light,medium to heavy weight materials and designed for
sewing stretchable materials or fabrics which need elasticity in stitching and great for narrow over edging widths.


Features:

• Fully Automatic Lubrication

• Differential Feed with Micro-metric Adjustment

• Easy to Use  Stitch Regulator

• Speed, Max. Up to 8500 s.p.m. (depending on materials, thread & operation)

• Fully automated lubrication with visual flow controls

• Lubricating oil continuously filtered by replaceable filter.

• External cooling of oil supply


(Thread Shown,Not Included) •Differential
feed with micro metric adjustment for shirring and stretching. Ratio up to 4 to 1

• Intermittent action possible

• Standard type B-29 needles

* Needle Gauge Note: Comes with standard gauge but more gauges are available,at additional cost.














SPECIFICATIONS:

Model: CM794

Max. Sewing Speed:* 7,500 S.P.M.

Presser Foot Lift: 5.5 mm

Differential Ratio: 1 : 0.7 ~ 1 : 2

Needle Gauge (2) **: 2 mm standard

Over-edging Width: 3, 4, 5 mm

Stitch Length, Max: 3.8 mm

Number of Threads: 4

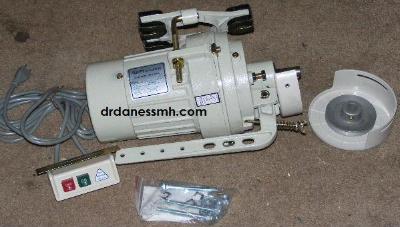

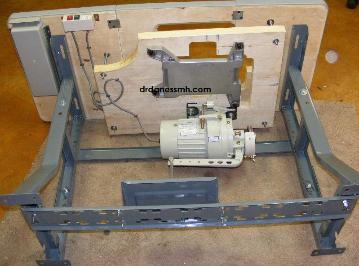

*Comes with Knockdown K-Leg Steel Stand with Hardware:( Nuts,Bolts,Screws),Submerge Table Top,1/2hp,
50/60hz,110/220v,3450 rpm Clutch Motor,(1) 4" Motor Pulley,(1) 33" V- Motor Belt,(2) Pedals,(1) Chain,(1) Four
Spool Thread Stand),(1) Top & Bottom Plastic Chip Chute,Draw.

Included Accessories:
(1) Large Screw Driver
(1) Small Screw Driver
(1) 7mm Box End Wrench
(1) 8mm-10mm Open Wrench
(1) Allen Wrench For Needle Screws
(4) Allen Wrenches
(2) Extra Needle Set Screws
(1) Small Oil Bottle
(1) Small Oiler Bottle
(1) Clear Vinyl Dust Cover
(1) Instruction Manual
(1) Pack of (5) B-29 Needles
(1) Qt. of Clear Oil
(50)
FREE Needles (B-29)
(2) 4oz. Cans of Oil

                                                                                                                 ( Assembled at Additional Cost)




Availability: Yes

Condition: New in (5) Boxes

Shipping: This item usually leaves warehouses 2-3 days

Returns: See our Store Policy

Add to Cart





Our Price$1,475.00
